Product Details

Description

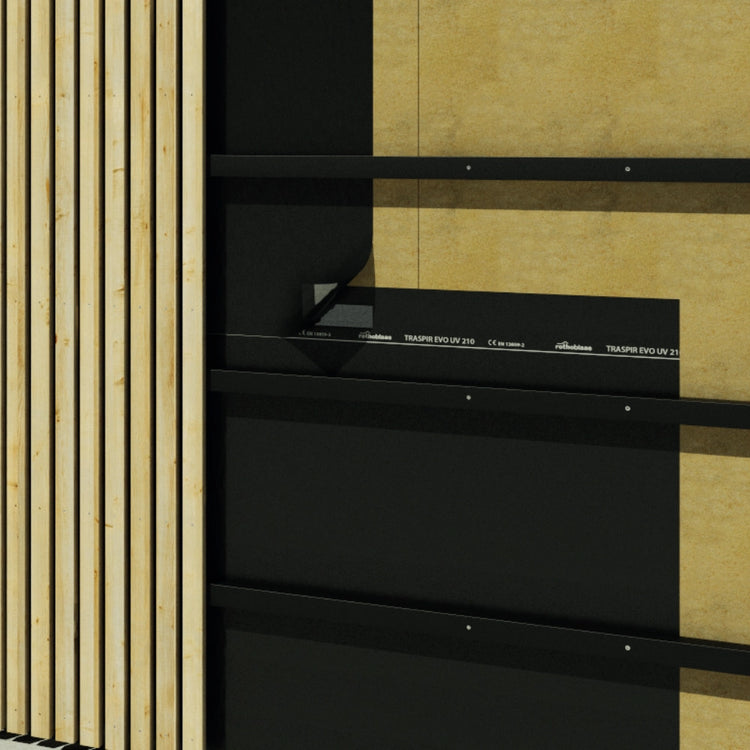

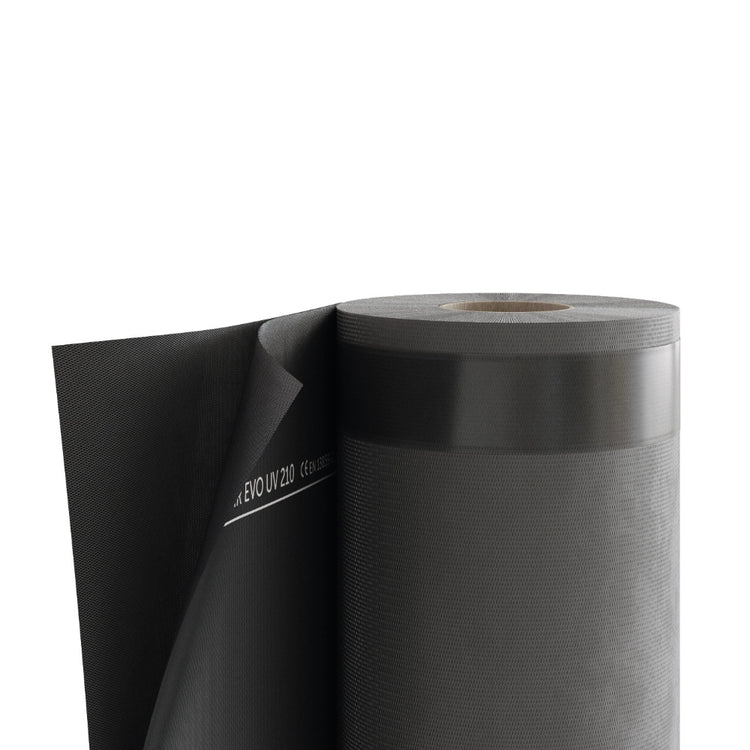

TRASPIR EVO UV 210 is the highly breathable monolithic membrane characterized by exceptional UV resistance and excellent flame retardant properties. It consists of a monolithic film in acrylic compound coated on a polyester reinforcement and is designed for application on the external side of walls.

With open joints exposure with a width up to 50 mm and a maximum of 40% uncovered area, TRASPIR EVO UV 210 membrane guarantees permanent UV stability. The aesthetic appearance is excellent: thanks to the mass per unit area and the polyacrylate mix, the membrane guarantees high thermal and dimensional stability, features that prevent the formation of swelling during installation.

The integrated double tape ensures a perfect seal; the final appearance is guaranteed by the use of FRONT BAND UV 210, made with the same support, to finish in with the membrane.

Key Points
Extremely stable and resistant to high temperatures ensuring excellent durability over time.
Euroclass reaction to fire B-s1,d0 based on EN 13501-1
Permanent resistance to UV rays with exposure with open joints up to 50mm wide and with up to 40% of the surface uncovered
Specification
Width 1.5mm
Length 50m
Thickness 0.3mm
Sd Value 0.04m
Mass per unit area 210 g/m²
Tensile Strength MD/CD 300/200 N/50mm
Resistance to nail tearing MD/CD 120/120 N
Watertightness Class W1
Reaction to fire Class B-s1,d0
Application

External:
Walls (open facade)

Description

TRASPIR EVO UV 210 is the highly breathable monolithic membrane characterized by exceptional UV resistance and excellent flame retardant properties. It consists of a monolithic film in acrylic compound coated on a polyester reinforcement and is designed for application on the external side of walls.

With open joints exposure with a width up to 50 mm and a maximum of 40% uncovered area, TRASPIR EVO UV 210 membrane guarantees permanent UV stability. The aesthetic appearance is excellent: thanks to the mass per unit area and the polyacrylate mix, the membrane guarantees high thermal and dimensional stability, features that prevent the formation of swelling during installation.

The integrated double tape ensures a perfect seal; the final appearance is guaranteed by the use of FRONT BAND UV 210, made with the same support, to finish in with the membrane.

Key Points
Extremely stable and resistant to high temperatures ensuring excellent durability over time.
Euroclass reaction to fire B-s1,d0 based on EN 13501-1
Permanent resistance to UV rays with exposure with open joints up to 50mm wide and with up to 40% of the surface uncovered
Specification
Width 1.5mm
Length 50m
Thickness 0.3mm
Sd Value 0.04m
Mass per unit area 210 g/m²
Tensile Strength MD/CD 300/200 N/50mm
Resistance to nail tearing MD/CD 120/120 N
Watertightness Class W1
Reaction to fire Class B-s1,d0
Application

TRASPIR EVO UV 210 is the highly breathable monolithic membrane characterized by exceptional UV resistance and excellent flame retardant properties. It consists of a monolithic film in acrylic compound coated on a polyester reinforcement and is designed for application on the external side of walls.

With open joints exposure with a width up to 50 mm and a maximum of 40% uncovered area, TRASPIR EVO UV 210 membrane guarantees permanent UV stability. The aesthetic appearance is excellent: thanks to the mass per unit area and the polyacrylate mix, the membrane guarantees high thermal and dimensional stability, features that prevent the formation of swelling during installation.

The integrated double tape ensures a perfect seal; the final appearance is guaranteed by the use of FRONT BAND UV 210, made with the same support, to finish in with the membrane.
