Product Details

Description

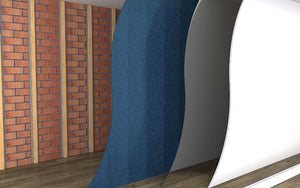

Spacetherm Wallboard is a thermal laminate which is to be fixed to timber straps. It consists of Spacetherm A1 insulation blanket bonded to plasterboard, and is ideal for use in applications where low U-values are required but space is at a premium. Spacetherm Wallboard is supplied with foil faced plasterboard as standard to reduce condensation. Plain plasterboard is available on request. Spacetherm Wallboard lining boards can achieve similar performance to other plasterboard laminates, but at a fraction of the thickness, allowing specifiers flexibility and higher performance for refurbishment projects. Due to Spacetherm’s hydrophobic qualities it is also possible to directly fix Spacetherm Laminates to certain existing wall substrates

What is Aerogel?
Although originally developed by Samuel Stephens Kistler in 1931, aerogel is more commonly associated with NASA who have invented groundbreaking methods of creating new types of aerogels that could change the way we think about insulation. Aerogel is a synthetic porous ultralight gel-like material created by removing the liquid component from gel and replacing it with gas, without any degradation to the gel structure. This produces an extremely low thermal conductivity which is perfect for thermal insulation.

    Key Points
    Thin insulation system for walls
    Class-Leading Performance
    Minimum loss of room width
    Cost effective
    Specification
    Length 2400mm
    Width 1200mm
    Sheet Coverage 2.88m²
    Thermal Conductivity Spacetherm Aerogel Blanket 0.0195 W/mK
    Reaction to Fire Spacetherm Aerogel Blanket - Class C-s1, d0 (EN 13501-1)
    Description

    Spacetherm Wallboard is a thermal laminate which is to be fixed to timber straps. It consists of Spacetherm A1 insulation blanket bonded to plasterboard, and is ideal for use in applications where low U-values are required but space is at a premium. Spacetherm Wallboard is supplied with foil faced plasterboard as standard to reduce condensation. Plain plasterboard is available on request. Spacetherm Wallboard lining boards can achieve similar performance to other plasterboard laminates, but at a fraction of the thickness, allowing specifiers flexibility and higher performance for refurbishment projects. Due to Spacetherm’s hydrophobic qualities it is also possible to directly fix Spacetherm Laminates to certain existing wall substrates

    What is Aerogel?
    Although originally developed by Samuel Stephens Kistler in 1931, aerogel is more commonly associated with NASA who have invented groundbreaking methods of creating new types of aerogels that could change the way we think about insulation. Aerogel is a synthetic porous ultralight gel-like material created by removing the liquid component from gel and replacing it with gas, without any degradation to the gel structure. This produces an extremely low thermal conductivity which is perfect for thermal insulation.

      Key Points
      Thin insulation system for walls
      Class-Leading Performance
      Minimum loss of room width
      Cost effective
      Specification
      Length 2400mm
      Width 1200mm
      Sheet Coverage 2.88m²
      Thermal Conductivity Spacetherm Aerogel Blanket 0.0195 W/mK
      Reaction to Fire Spacetherm Aerogel Blanket - Class C-s1, d0 (EN 13501-1)
      Application

      Spacetherm Wallboard is a thermal laminate which is to be fixed to timber straps. It consists of Spacetherm A1 insulation blanket bonded to plasterboard, and is ideal for use in applications where low U-values are required but space is at a premium. Spacetherm Wallboard is supplied with foil faced plasterboard as standard to reduce condensation. Plain plasterboard is available on request. Spacetherm Wallboard lining boards can achieve similar performance to other plasterboard laminates, but at a fraction of the thickness, allowing specifiers flexibility and higher performance for refurbishment projects. Due to Spacetherm’s hydrophobic qualities it is also possible to directly fix Spacetherm Laminates to certain existing wall substrates

      What is Aerogel?
      Although originally developed by Samuel Stephens Kistler in 1931, aerogel is more commonly associated with NASA who have invented groundbreaking methods of creating new types of aerogels that could change the way we think about insulation. Aerogel is a synthetic porous ultralight gel-like material created by removing the liquid component from gel and replacing it with gas, without any degradation to the gel structure. This produces an extremely low thermal conductivity which is perfect for thermal insulation.

        Datasheets, Guides & Documents

        Add-on products for A Proctor Group

        PROCTOR Spacetherm® Cold Bridge Strip
        SPACETHERM® by A. Proctor Group

        PROCTOR Spacetherm® Cold Bridge Strip

        £ Looking for a price?

        Add to a quote for our best rate.

        Customer Reviews

        Be the first to write a review
        0%
        (0)
        0%
        (0)
        0%
        (0)
        0%
        (0)
        0%
        (0)
        New

        PROCTOR Spacetherm® Wallboard Laminate (Aerogel + Plasterboard) - 2400mm x 1200mm (Copy)

        Spacetherm® by A. Proctor Group
        27.5 mm Thickness
        0.0195 W/mK Thermal conductivity
        2.88 m² Coverage

        £ Looking for a price?

        Add to a quote for our best rate.

        POA

        Please get in touch for further pricing or information on this product.
        Call 01786 657 911 or email help@insulationmerchant.com

        Thickness:
        Call to enquire

        Product Code: SKU: PROC/STWB-275
