Description

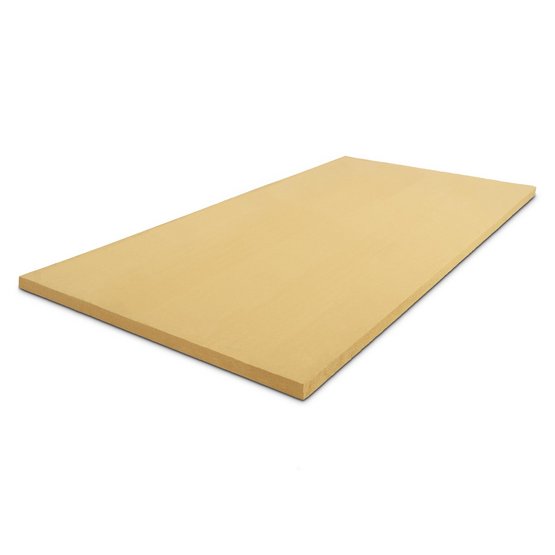

STEICO Protect H (dry) render carrying wood fibre insulation board is suitable for soffit/reveal areas, compatible with STEICO external thermal insulation composite systems ETICS on timber and mineral substrates. It can also be used for ventilated facades, providing effective reduction of thermal bridges. The board allows for variable cutting to fit required reveal widths and is made from PEFC-certified wood sourced from responsible forestry, ensuring both high performance and sustainability.

Key Points
Reduction of thermal bridges
Suitable for use with direct render systems
For STEICO external thermal insulation composite systems in timber construction and on mineral substrates
Robust and economic on-site handling
Manufactured in dry process. Lightweight homogenous boards
Excellent thermal characteristics in summer and winter
Can also be used for ventilated facades
Specification
Thickness 40mm
Length 1325mm
Width 600mm
Density Approx. 180 kg / m³
Water vapour diffusion resistance factor 3μ
Thermal Conductivity 0.043 W/mK
Declared Thermal Resistance 0.90 (m²*K)/W
Specific heat capacity 2.100 J/(kg*K)
SD Value 0.12 m
Application

Applications:

Wood fibre insulation board for use in External Thermal Insulation Composite Systems (ETICS)

Certifications:

Fire Class: E - EN 13501-1
Board designation: WF - EN 13171 - T5 - DS(70,90)3 - CS(10\Y)200 - TR30 - WS1,0 - MU3

Description

STEICO Protect H (dry) render carrying wood fibre insulation board is suitable for soffit/reveal areas, compatible with STEICO external thermal insulation composite systems ETICS on timber and mineral substrates. It can also be used for ventilated facades, providing effective reduction of thermal bridges. The board allows for variable cutting to fit required reveal widths and is made from PEFC-certified wood sourced from responsible forestry, ensuring both high performance and sustainability.

Key Points
Reduction of thermal bridges
Suitable for use with direct render systems
For STEICO external thermal insulation composite systems in timber construction and on mineral substrates
Robust and economic on-site handling
Manufactured in dry process. Lightweight homogenous boards
Excellent thermal characteristics in summer and winter
Can also be used for ventilated facades
Specification
Thickness 40mm
Length 1325mm
Width 600mm
Density Approx. 180 kg / m³
Water vapour diffusion resistance factor 3μ
Thermal Conductivity 0.043 W/mK
Declared Thermal Resistance 0.90 (m²*K)/W
Specific heat capacity 2.100 J/(kg*K)
SD Value 0.12 m
Application

STEICO Protect H (dry) render carrying wood fibre insulation board is suitable for soffit/reveal areas, compatible with STEICO external thermal insulation composite systems ETICS on timber and mineral substrates. It can also be used for ventilated facades, providing effective reduction of thermal bridges. The board allows for variable cutting to fit required reveal widths and is made from PEFC-certified wood sourced from responsible forestry, ensuring both high performance and sustainability.

Datasheets, Guides & Documents

Techincal Datasheets (TDS)

STEICO Protect Dry Technical Data Sheet GBR IRL

40mm STEICO Protect H (dry) - 1350mm x 600mm

Protect H (dry) by Steico
40 mm Thickness
0.043 W/mK Thermal conductivity
0.810 m² Coverage

Looking for a price?

Add to a quote for our best rate.

POA

Please get in touch for further pricing or information on this product.
Call 01786 657 911 or email help@insulationmerchant.com

Call to enquire

Product Code: STE/PRDRYH-40

MPN (Manufacturers Part Number): 432395
