Product Details

Description

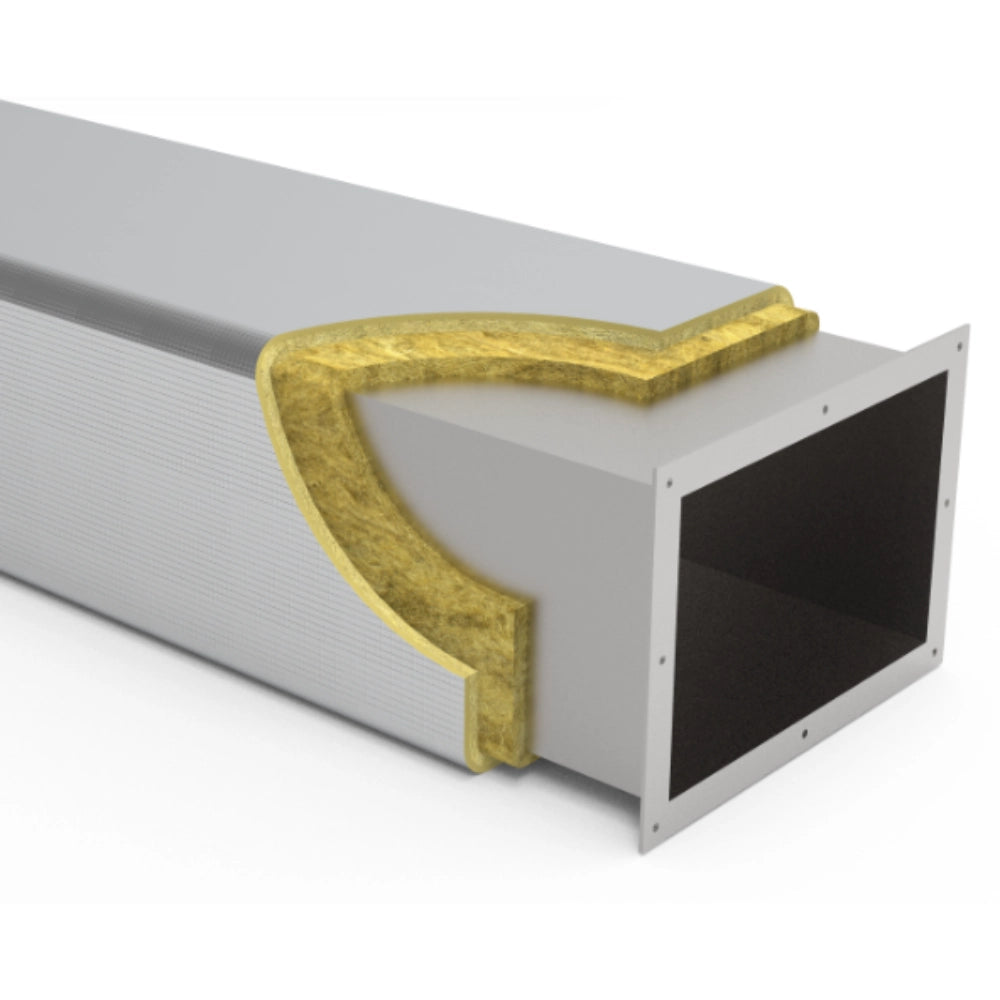

Siderise DWX is a flexible acoustic duct wrap combining a quilted insulation core and dense polymeric membrane to reduce sound transmission and improve thermal performance, with a foil-faced vapour barrier for external duct applications.

Key Points

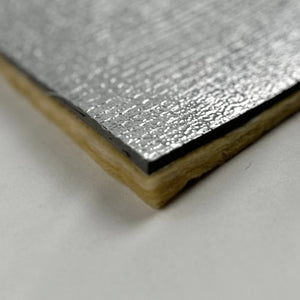

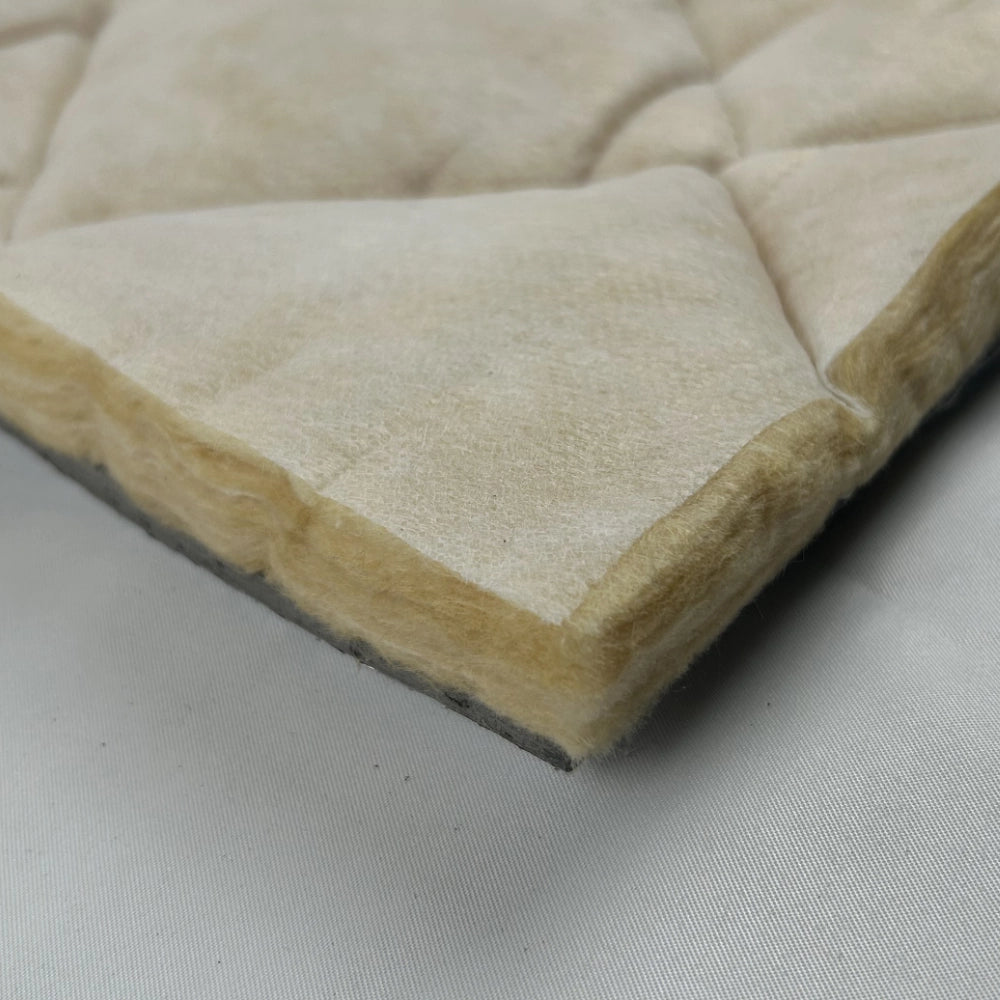

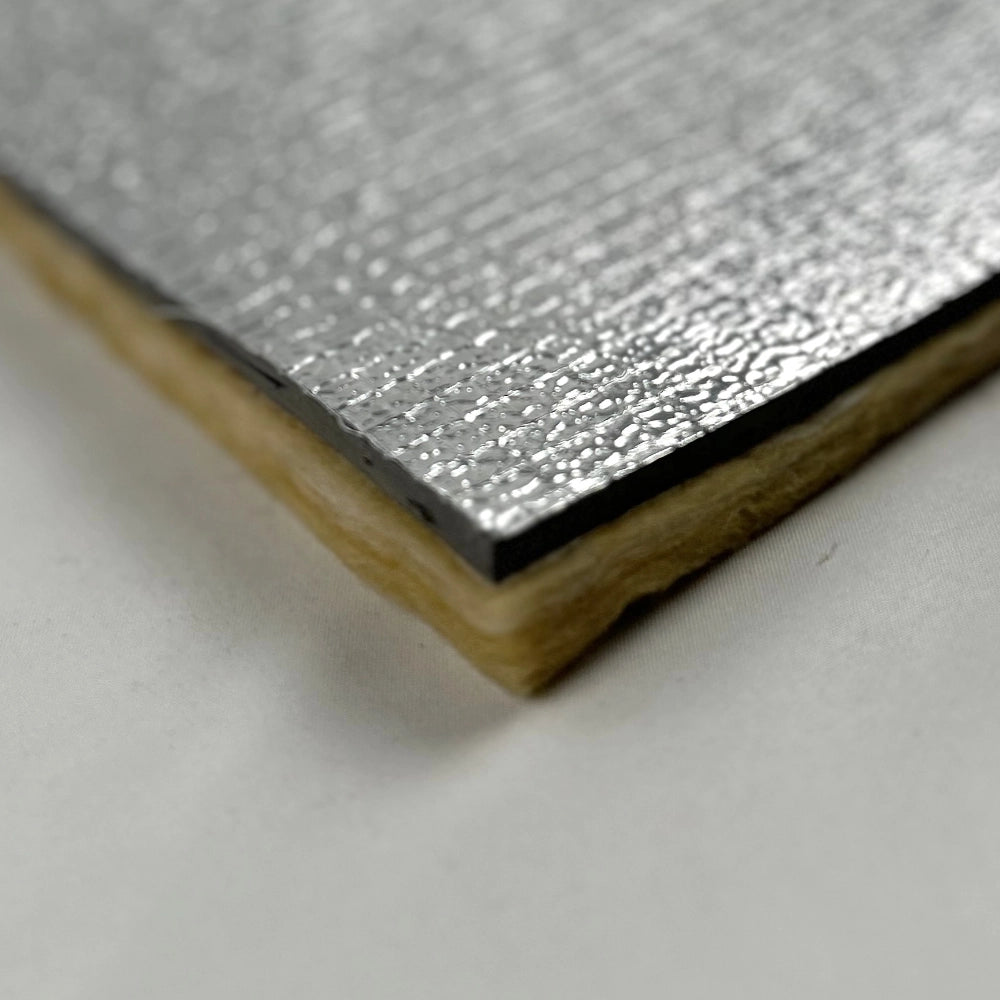

DWX consists of a flexible resin-bonded glass fibre quilt enclosed within an anti-dusting fleece and diamond-stitched. It features an outer heavy polymeric acoustic membrane with a surface weight of 5kg/m² & 10kg/m². The exposed surface is finished with a Class 0 reinforced H&V aluminum foil.
This product has a wide range of applications, including use in ductwork, ventilation equipment, concrete columns, generators, compressors, process plants, and electrical equipment.
To enhance sound transmission loss in low-mass, thin-sheet HVAC duct constructions.
Designed for ease of handling and installation, with a flexible construction that accommodates complex duct geometries.
Good dampening characteristics
Specification
Width 2000mm
Height 1200mm
Depth 25mm
Description

Siderise DWX is a flexible acoustic duct wrap combining a quilted insulation core and dense polymeric membrane to reduce sound transmission and improve thermal performance, with a foil-faced vapour barrier for external duct applications.

Key Points
DWX consists of a flexible resin-bonded glass fibre quilt enclosed within an anti-dusting fleece and diamond-stitched. It features an outer heavy polymeric acoustic membrane with a surface weight of 5kg/m² & 10kg/m². The exposed surface is finished with a Class 0 reinforced H&V aluminum foil.
This product has a wide range of applications, including use in ductwork, ventilation equipment, concrete columns, generators, compressors, process plants, and electrical equipment.
To enhance sound transmission loss in low-mass, thin-sheet HVAC duct constructions.
Designed for ease of handling and installation, with a flexible construction that accommodates complex duct geometries.
Good dampening characteristics
Specification
Width 2000mm
Height 1200mm
Depth 25mm
Application

Siderise DWX is a flexible acoustic duct wrap combining a quilted insulation core and dense polymeric membrane to reduce sound transmission and improve thermal performance, with a foil-faced vapour barrier for external duct applications.

Datasheets, Guides & Documents

Techincal Datasheets (TDS)

Siderise DWX Duct Acoustic Barrier TDS v2.00 (January 2025)

Product Brochure

Siderise HVAC Brochure v1.00 (October 2023)

Install Guide

Siderise Handling Safety Sheet v1.02 (January 2024)

Siderise DWX Acoustic Duct Insulation Wrap - 2m x 1.2m x 25mm

DWX by Siderise
SIDERISE
25 mm Thickness
2.4 m² Coverage

Looking for a price?

Add to a quote for our best rate.

Guernsey
Not all products for Guernsey have shipping rates.

Please submit a quote or call our team to get confirmed shipping rates.

Surface Weight:
Call to enquire

Product Code: SID/DWX5

MPN (Manufacturers Part Number): DWX5.V
