Product Details

Description

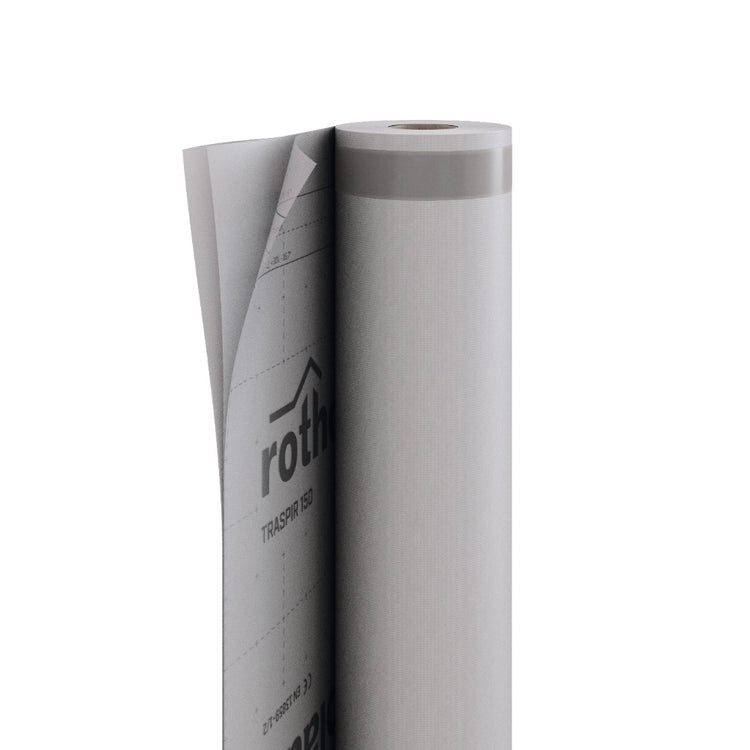

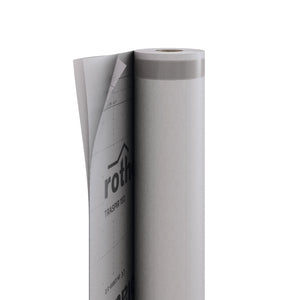

The highly breathable membrane TRASPIR 150 optimises airtightness, limiting the uncontrolled passage of air and protecting the structure from the entry of hot draughts in summer and cold draughts in winter.

Available with or without integrated tape and also in a 3-metre version. It consists of a microporous film and protective polypropylene layers and is designed for application on the external and internal sides of walls and roofs.

Key Points
Low Sd Value of 0.02m
BBA Certified
Available with integrated tapes
Specification
Width 1.5mm & 3m
Length 50m
Thickness 0.7mm
Sd Value 0.02m
Mass per unit area 150 g/m²
Tensile Strength MD/CD 350/210 N/50mm
Resistance to nail tearing MD/CD 190/225 N
Watertightness Class W1
Application

External:
Roof, walls, floor

Description

The highly breathable membrane TRASPIR 150 optimises airtightness, limiting the uncontrolled passage of air and protecting the structure from the entry of hot draughts in summer and cold draughts in winter.

Available with or without integrated tape and also in a 3-metre version. It consists of a microporous film and protective polypropylene layers and is designed for application on the external and internal sides of walls and roofs.

Key Points
Low Sd Value of 0.02m
BBA Certified
Available with integrated tapes
Specification
Width 1.5mm & 3m
Length 50m
Thickness 0.7mm
Sd Value 0.02m
Mass per unit area 150 g/m²
Tensile Strength MD/CD 350/210 N/50mm
Resistance to nail tearing MD/CD 190/225 N
Watertightness Class W1
Application

The highly breathable membrane TRASPIR 150 optimises airtightness, limiting the uncontrolled passage of air and protecting the structure from the entry of hot draughts in summer and cold draughts in winter.

Available with or without integrated tape and also in a 3-metre version. It consists of a microporous film and protective polypropylene layers and is designed for application on the external and internal sides of walls and roofs.

Datasheets, Guides & Documents

Techincal Datasheets (TDS)

Rothoblaas TRASPIR 150 Declaration of Performance
Rothoblaas TRASPIR 150 Technical Data Sheet

BBA Certificates

Rothoblaas Traspir 150 BBA Timber Frame Construction (18 November 2022)
Rothoblaas Traspir 150 BBA WARM NON VENTILATED COLD VENTILATED ROOFS (18 November 2022)
Rothoblaas Traspir 150 BBA COLD NON VENTILATED ROOFS (18 November 2022)

Install Guide

Rothoblaas TRASPIR Install Guide
